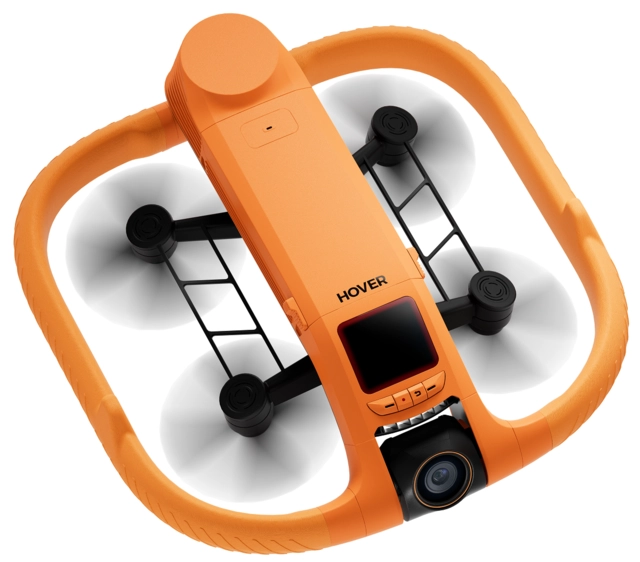

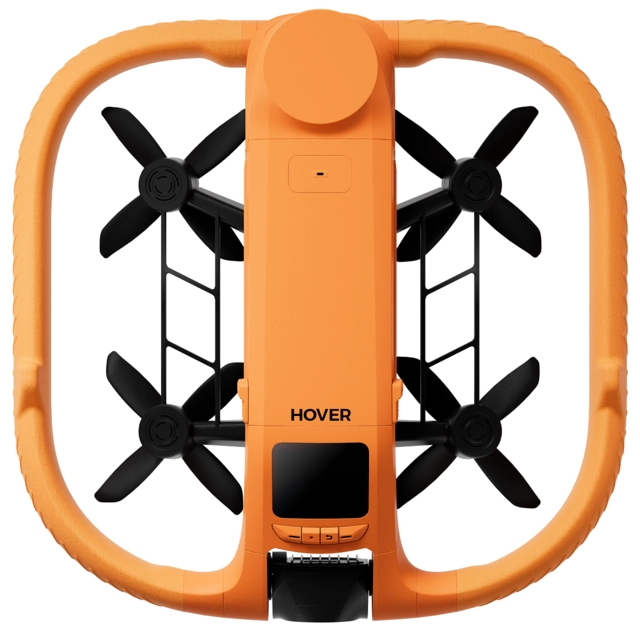

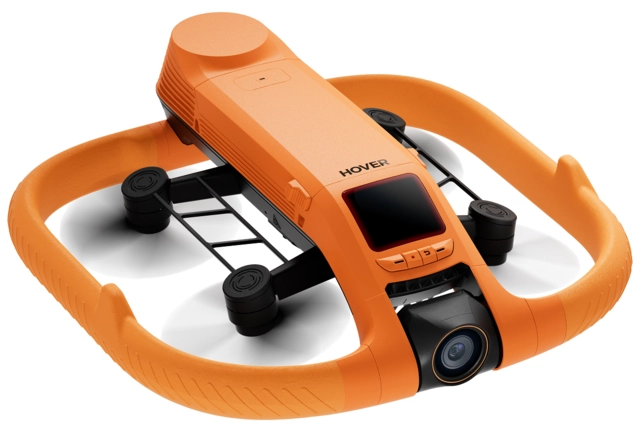

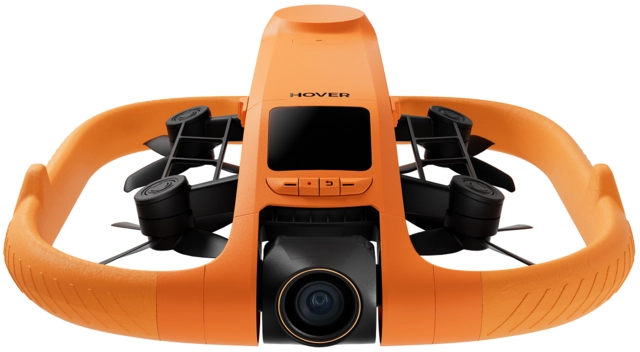

| Aircraft |
|
| Weight |
249g |
| Dimensions |
7.95
in (L) × 8.11 in (W) × 2.46 in (H) |
| Operating
Temperature |
-5°
to 40° C (23° to 104° F) |
| Max
Horizontal Speed |
34
mph (55 km/h) |
| Max Ascent
Speed |
6.7
mph (10.8km/h) |
| Max Descent
Speed |
6.7
mph (10.8km/h) |
| Max Takeoff
Altitude |
18,045 ft (5,500
m)
*This data is for reference only. Actual performance may vary depending on
the environment and conditions. |
| Max Flight
Height |
394 ft (120m) |
| Max Flight
Time |
23 minutes |
| Max Wind
Speed Resistance |
Level
7 (up to 33 knots) |
| Positioning
System |
GNSS:
GPS+Galileo+BeiDou+Glonass
RTK (with Lighthouse)
Visual Positioning: VIO |

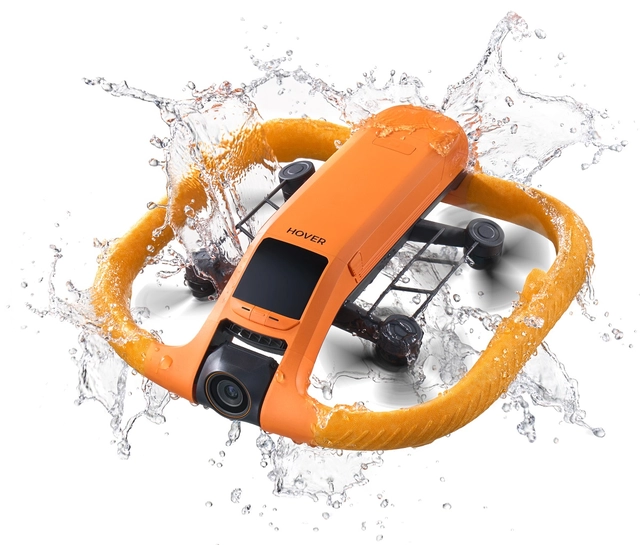

| Buoyancy |
Positive
– take off/land on water |
| Camera |
|
| Lens |
Hydrophobic lens with self-heating
anti-fog technology for enhanced water beading and runoff
FOV: 85°
Format Equivalent: 24 mm
Focus Mode: FF
Aperture: f/2.55
AF Range: 0.75 m (2.46 ft) to 8 |
| Image Sensor |
1/1.28''
CMOS |
| Flight Modes |
Paddleboard Mode,
Kayak Mode, Surf Mode, Follow, Dolly Track, Angle Track, Orbit Follow, Orbit,
Hover, Zoom Out, Bird's Eye, Spiral, 360° Spin, Manual Control |
| ISO Range |
100-128000 |
| Shutter Speed |
1/50-1/4000 |
| Video
Resolution |
Horizontal:
4K(3840 x 2160)@100/60/50/30/25/24fps
1080P(1920 x 1080)@100/60/50/30/25/24fps
Vertical:
4K(2160 x 3840)@30/25/24fps
2.7K(1520 x 2704)@60/50/30/25/24fps
1080P(1080 x 1920)@60/50/30/25/24fps |
| Slow Motion |
4K@100
fps; 1080P@100 fps |
| Video Modes |
Standard,
H-Log(10 bit), Slow Motion, Vertica |
| Video Format |
MP4 |
| Video Coding |
H.264, H.265 |
| Max Video
Bitrate |
160Mbps |
| Max Image
Size |
4000*3000 (12MP) |
| Photo Format |
JPEG |
| Video
Exposure Mode |
Auto |
| Photo
Exposure Mode |
Auto |
| White Balance |
Auto |
| EIS |
SmoothCapture3.0
technology |
| Gimbal |
|
| Stabilization |
1-axis gimbal
+ EIS + Horizon leveling |
| Controllable
Range |
Tilt:
-90° to 30° |
| Sensing |
|
| Sensing Type |
Downward: Visual-Inertial Odometry
(VIO)
Downward: millimeter-wave radar |
| Battery |
|
| Capacity |
2013 mAh |
| Weight |
89g |
| Standard
Voltage |
10.74V |
| Charging
Limit Voltage |
12.9V |
| Battery Type |
Li-ion |
| Energy |
21.62Wh |
| Charging
Temperature |
0°
to 55° C (32° to 131° F) |
| Charging Time |
With the Charging Hub
and a 65W Power Adapter, fully charge one battery in 52 minutes or two
batteries in 85 minutes.
When charging the battery inside the camera, it reaches 100% in just 55
minutes. |
| Battery Charging Hub |
|
| Input |
5V ~ 20V |
| Output |
12.9V,4.5A (MAX) |
| Charging Type |
Supports dual-battery
parallel charging |
| Charger |
|
| Recommended Charger |
PD 18W adapter |
| Storage |
|
| Internal Storage |
128 GB; UFS
2.2
*External SD cards not supported |
| Beacon & Joysticks |
|
| Max Operating Time |
Beacon(without phone): 120 minutes
Beacon+Joystick A/Joystick A+B(without phone): 150 minutes
Beacon(with phone): 60 minutes |
| Operating
Temperature |
20?-40? |
| Charging Time |
Beacon: 60-90 minutes
(input: 5W)
Joystick: 75 minutes
Beacon+Joysticks: 2.5-3 hours |
| Battery
Capacity |
Beacon
only: 120 minutes
Beacon + Joystick A (or multiple joysticks) (no smartphone display): 150
minutes
Beacon + Joystick A (or multiple joysticks) (with smartphone display): 60
minutes |
| Real-time
monitoring |
Yes |
| Max
Transmission Distance |
Up to 1 km |
| Maximum
flight altitude |
120m |
| Flight mode
selection |
Yes |
| Camera
settings adjustment |
Yes |
| Noise-cancellation
sound recording |
Yes |
| One-handed
controller |
Yes |
| Two-handed
controller |
Yes |
| HoverLink |
Yes |
| Return-to-home
(RTH) |
Yes |
| Control System |
|
| Operating
Frequency |
2.4 GHz
5.8 GHz
*Operating frequency may differ by country or
region. Please refer to local regulations for more information. |
| Accessories |
Fully
automated with Lighthouse; Beacon & JoySticks |
| Mobile Device
App |
Hover X1
* iOS 12.1 or above, Android 9.0 or above |
