Haibike AllMtn CF SE
* Similar to illustration / may contain special equipment.
Go anywhere! That's the motto of our new Special Edition of the All Mountain series. With our AllMtn CF SE, there are no limits to what you can do off-road: Whether it's a ride off-road, jumps in the bike park, tricky downhills or sweaty climbs - with this all-purpose weapon, really anything is possible. The brand new Bosch Performance CX Smart System drive with 85 Nm of torque accelerates powerfully uphill and the 750 Wh battery offers enough energy reserves for even longer rides. The lightweight carbon main frame and top components such as the SRAM X01 Eagle rear derailleur, a RockShox Lyrik Ultimate air suspension fork with 160 mm travel and snappy MT7 4-piston disc brakes from Magura make the AllMtn CF SE the perfect partner for performance-oriented riders who always want to have their bike under control off the beaten track.
Key Features:
- Drive Unit: Bosch Performance CX Smart System, 85Nm, 25km/h
- Battery: Bosch PowerTube 750Wh
- Fork: RockShox Lyrik Ultimate RC, Travel: 160mm
- Mixed Wheel Sizes: 27.5" / 29"
| Drive
Unit |

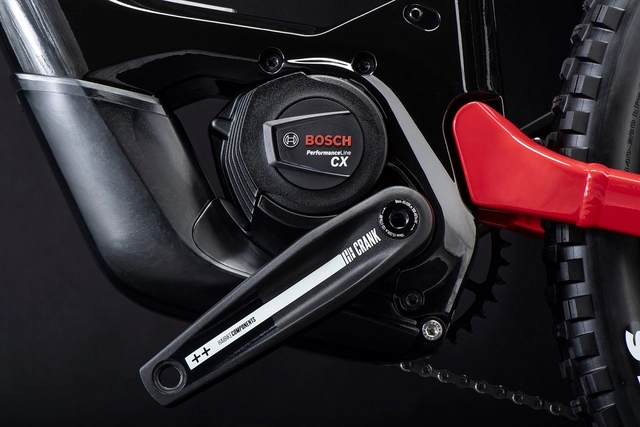

Bosch, Performance CX Smart
System, 250 Wh, 85 Nm |
| Display |

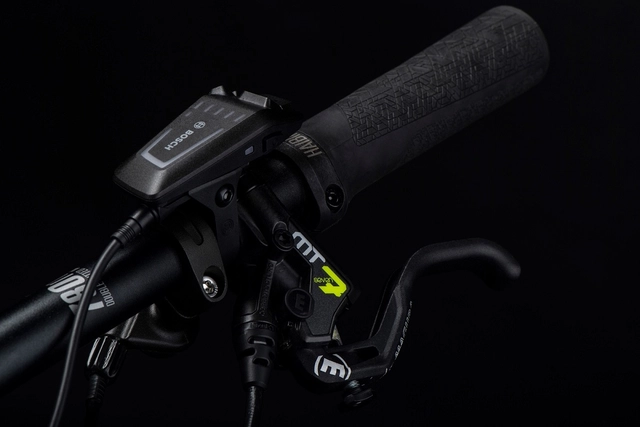

Bosch, Kiox 300 + LED Remote |
| Battery |
Bosch, PowerTube, 750 Wh |
| Frame
Family |
Haibike, AllMtn Bosch CF Smart
System, Carbon/aluminium |
| Fork |
RockShox, Lyrik Ultimate RC,
Air/oil, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2"
tapered, 15 x 110mm thru-axle Boost |
| Damper |
RockShox, Deluxe Select Plus,
Air, Trunnion Mount |
| Crank
Arm |
Haibike Components, The Crank
++, Aluminium |
| Brake
(Front) |
Magura, MT7, 4-piston disc brake |
| Brake
(Rear) |

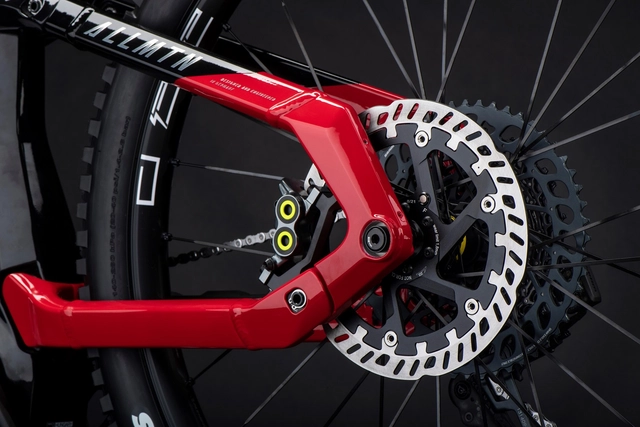

Magura, MT7, 4-piston disc brake |
| Tube |
Presta valve |
| Clamping
Ring |
Internal hexagon, 34.9 mm |
| Rear
Derailleur |
Sram, AXS X01 Eagle |
| Shift
Lever |
Sram, AXS Paddle, Trigger switch |
| Bottom
Bracket |
integrated in the motor |
| Sprocket |
Sram, GX 1275 Eagle, 10 - 50
teeth |
| Chain |
Sram, X01 Eagle |
| Chainring |
Sram, Aluminium, 36 teeth |
| Chain
Guide |
Nylon directmount |
| Brake
Lever |
Magura, MT7 HC-lever |
| Brake
Disc (Front) |
Magura, MDR-P 203, 203 mm |
| Brake
Disc (Rear) |
Magura, MDR-P 203, 203 mm |
| Tyre |
Maxxis, Minion DHF II, 65-622,
29 x 2.5 inch |
| Wheel
Set |
Mavic, E- Deemax |
| Handlebar |
Raceface, Atlas, 785 mm |
| Grips |
Haibike, MTB grips |
| Stem |
Raceface, Chester, A-head, 31.8
mm |
| Headset |
Acros, Cable integration,
Aluminium |
| Saddle |
fi'zi:k, Terra Aidon X5-160 |
| Seat
Post |
Raceface, Turbine R, Aluminium,
Telescope, 31.6 mm |
| Pedals |
Freeridepedal, Aluminium, with
Reflector |
| Permitted
Total Weight |
120.0 kg |
| Tyre
(Rear) |
Maxxis, Minion DHR II, 71-584,
27.5 x 2.8 inch |
* The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike are not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems due to the Corona pandemic.
