Norco Charger 20Charger Youth features three sizes, 20", 24" and 26" wheels, for options on a low standover on a lightweight aluminum frame – modern features for the whole family. Head for local trails and urban pathways, cruise the campground, or commute to school in style.

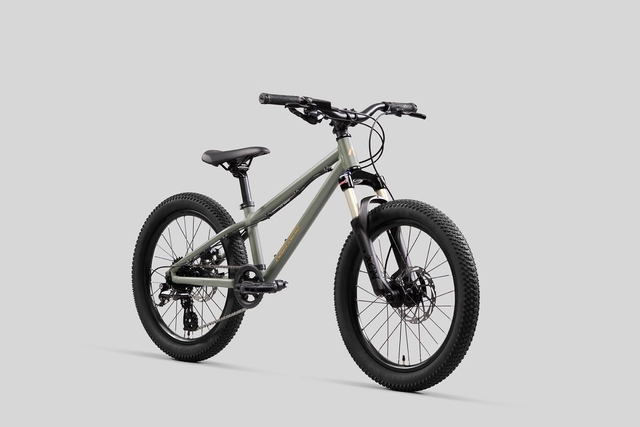

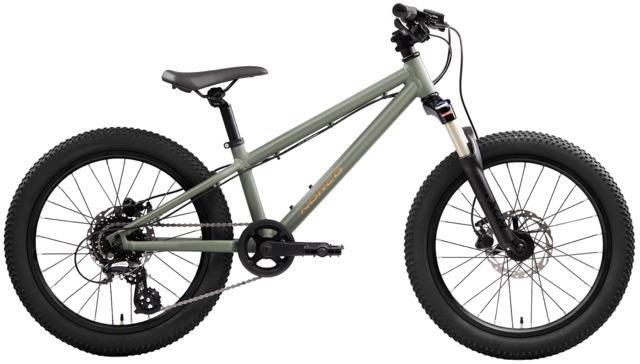

Charger Youth 20 is a durable and lightweight kid's bike, perfect for exploring local trails, commuting to school, or going on adventures with the family. Charger Youth 20 has kid-friendly geometry, high-quality suspension and gearing, and powerful disc brakes.
New technology
Lightweight aluminum youth frame fits just right with custom tube shapes and optimized standover height, giving more control to young riders.
Kid-friendly geometry
New sizes for youth riders who aren't ready to step up to a frame with 27.5" wheels. Each size features a low standover height with the ability to raise the seat as riders grow.
Lightweight suspension
All Charger's come with a lightweight, easy-adjust air spring suspension fork.
Powerful disc brakes
Charger comes equipped with powerful hydraulic disc brakes so young riders can start learning to feather the brakes and stop exactly when they want to. Brakes have JR levers for smaller hands, providing more control.
Gear range
The perfect gear range to keep young riders shifting smoothly, and a wide-range cassette to keep the ride rolling smoothly – both up the trail and down.
Key components
- Frame: Alloy
- Wheelsize: 20"
- Fork: SR Suntour XCR Air with LO, 63mm travel
- Drivetrain: Shimano Acera, 8-speed
- Brakes: Tektro HD-M286, 160mm
Recommended sizing [body height]
- 110-127 cm (110-112cm grow-in period)
Specs
| Frame |
Aluminum, 9x135mm QR, 20" |
| Fork |
SR Suntour XCR Air w/LO, 63mm, 9X100 QR |
| Headset |
External Cup Ball Bearing,
1-1/8" EC 34 |
| Headset Spacer |
1x10mm , 2x5mm |
| Grips |
Norco Youth, 115mm Length |
| Handle Bar |
Alloy Jr. Riser, 540mm, 30mm
Rise |
| Stem |
Alloy 35mm Length, 31.8mm Clamp |
| Seat Post |
Norco Alloy 27.2mm, 250mm length |
| Seat Post Clamp |
Norco Alloy Bolted, 31.8mm
ID |
| Saddle |
Norco Youth, Steel Rail |
| Front Brake |
Tektro HD-M286, Resin Pads |
| Front Brake Rotor |
Tektro. 160mm rotor, 6-bolt |
| Rear Brake |
Tektro HD-M286, Resin Pads |
| Rear Brake Rotor |
Tektro. 160mm rotor, 6-bolt |
| Brake Levers |
Tektro HD-M286, Hydraulic
2-Finger Jr. Levers |
| Shifter Rear |
Shimano Cues SL-U4050-9R, 9sp,
Jr short reach |
| Rear Derailleur |
Shimano Cues RD-U40100, 9sp,
Short Cage Jr |
| Cassette |
Shimano Cues CS-LG300-9, 11-36T,
9sp |
| Chain |
KMC Z9 |
| Crankset |
Alloy 3pc, 140mm, 28T Narrow
Wide |
| Bottom Bracket |
Sealed bearing, ST 68mm |
| Pedals |
Jr. MTB Flat, 9/16" |
| Front Hub |
Formula DC-1420 , 9x100mm QR,
28h, 6-bolt |
| Rear Hub |
Formula DC-1425,10x135mm QR, HG,
28H, 6-bolt |
| Spokes/Nipples |
Stainless Steel w/Brass Nipples
- Black |
| Rims |
Aluminum DW, 28h, 20" MTB |
| Front Tire |
CY Trail, 20x2.25", Wire |
| Rear Tire |
CY Trail, 20x2.25", Wire |
| Weight |
10.63 kg (23.4 lbs) |
